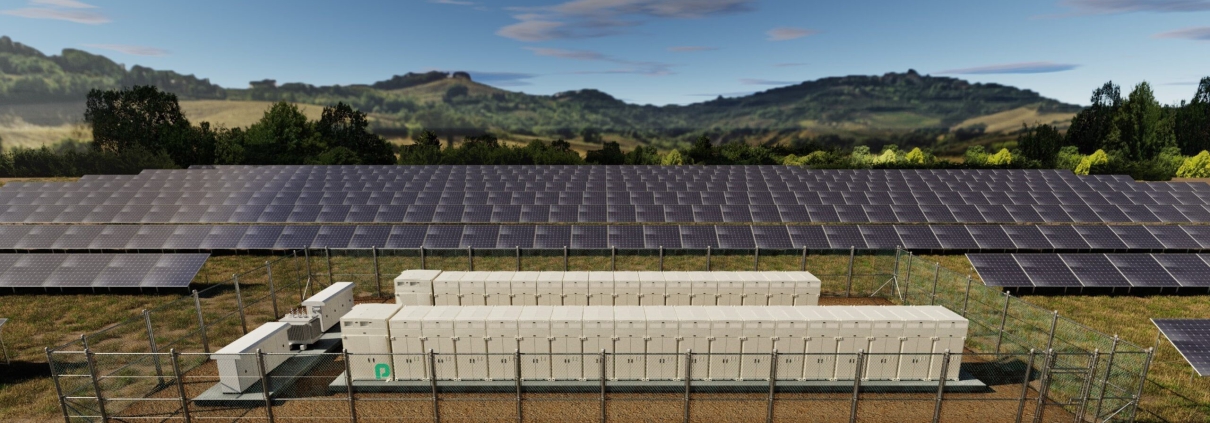

Solar Energy Storage Systems: Engineering Principles, System Architecture, and Integration Best Practices
Solar alone cannot deliver the reliability, dispatchability, and controllability required by today’s commercial, industrial, and utility-scale operations. The true transformation happens when solar is combined with a modern solar energy storage system—a multi-layered engineering solution integrating batteries, power electronics, software, and grid-interactive controls.
This article provides a technical, engineering-focused perspective, helping developers, EPC firms, system integrators, and facility engineers design, evaluate, and deploy high-performance solar-plus-storage systems.
- What Defines a Solar Energy Storage System in Engineering Terms?
A solar energy storage system is more than “solar panels + battery.” It incorporates tightly integrated subsystems that determine performance, reliability, and long-term lifecycle economics.
1.1 Core System Components
- PV array (TOPCon, PERC, HJT)
- Power Conversion System (PCS)—DC/DC converters, inverters
- Battery Energy Storage System (BESS)
- LFP modules
- Racks or cabinets
- Multi-layer BMS
- Thermal management (air or liquid cooling)
- Energy Management System (EMS)
- Switchgear, relays, fuses, fire protection
- Transformers and MV equipment (for MW-scale systems)
1.2 Performance Metrics Engineers Prioritize
- Round-trip efficiency (RTE)
- PV-to-battery direct charging efficiency
- Rated & peak C-rates
- Cycle life at operating temperature
- Warranty SOH curve
- LCOS (Levelized Cost of Storage)
These parameters determine grid compliance, revenue potential, and operational reliability.
- System Architectures: DC-Coupled, AC-Coupled, and Hybrid
Choosing the right architecture is a core engineering decision. It defines system efficiency, interoperability, project cost, and grid interaction behavior.
2.1 DC-Coupled Solar Energy Storage System
Topology:
PV → DC/DC → Battery → PCS → Grid
Engineering Advantages
- Highest round-trip efficiency
- Direct PV-to-battery utilization during curtailment
- Strong economics for time-shifting and peak shaving
- Simplified energy flow control
Engineering Challenges
- More complex DC protection
- Requires tight PV-BESS coordination
- Requires compatible inverter + DC/DC hardware
Ideal for:
New utility-scale or large C&I projects where efficiency is a priority.
2.2 AC-Coupled Solar Energy Storage System
Topology:
PV inverter → AC bus → BESS PCS → Grid
Advantages
- Full independence between PV and BESS
- Ideal for retrofits and system expansion
- Interoperable with multi-brand equipment
Challenges
- Extra conversion losses
- Synchronization and islanding control must be precise
Ideal for:
Facilities upgrading existing PV systems.
2.3 Hybrid Inverters (PV + BESS Integrated)
Advantages:
Lower BOS cost, simplified installation, ideal for commercial rooftops.
Limitations:
Scaling limitations and vendor-locked ecosystems.
- Battery Engineering: Chemistry, BMS, and Thermal Management
3.1 Why LFP Dominates Modern Solar Energy Storage Systems
Engineers overwhelmingly select lithium iron phosphate (LFP) due to:
- Superior thermal stability
- High cycle life (6,000–10,000 cycles)
- Proven UL 9540A performance
- Minimal exothermic chain reaction risk
- Industrial-level consistency
NMC and other chemistries are declining in stationary storage due to tougher safety constraints.
3.2 Thermal Management: The Core of Reliability
Temperature uniformity directly impacts cycle life and safety.
| Cooling Method | Engineering Use Case | Pros | Cons |
| Forced Air | Small/medium systems | Simple, low cost | Lower uniformity |
| Liquid Cooling | C&I & Utility | Excellent uniformity, high cycle life | Slightly higher cost |
| Hybrid | Harsh climates | Balanced | Higher complexity |
Liquid cooling is now the mainstream for MW-class solar-plus-storage due to ±1–3°C uniformity.
3.3 BMS Architecture Contributes to System Safety
A professional BESS includes:
- Module BMS
- Rack BMS
- Cluster BMS
- System BMS
Key communication standards:
- CAN
- Modbus TCP
- IEC 61850 (utility SCADA)
High-quality BMS ensures accurate SOC, fault isolation, and safe high-C-rate PV charging.
- EMS, Controls, and Grid Interaction
4.1 EMS Control Functions
A robust EMS should manage:
- Forecast-based PV-BESS dispatch
- Peak shaving and demand charge management
- Frequency & voltage regulation
- Microgrid islanding and black start
- Curtailment optimization
- Capacity bidding
The EMS layer defines the intelligence of the system.
4.2 Grid Interconnection & Compliance
Solar-plus-storage must meet:
- IEEE 1547-2018
- UL 1741 SA/SB
- NERC protection rules
- Local FE/RE ride-through requirements
Compliance affects project approval and inverter setpoint strategies.
4.3 Protection Engineering
Key systems for MW-scale projects:
- DC arc-fault detection
- Overcurrent coordination
- Isolation monitoring
- Fire suppression tied to UL 9540A data
- PCS fault ride-through
Protection engineering differentiates utility-grade deployments from commercial ones.
- Application-Level Engineering Considerations
5.1 Commercial & Industrial Facilities
For factories, warehouses, data centers, EV fleets:
Core drivers:
- Demand charge reduction
- Peak shaving
- Critical load backup
- PV self-consumption optimization
Recommended C&I system solution:
👉 https://leochlithium.us/ci/
(Link inserted naturally as: technical reference for commercial deployments.)
5.2 Utility-Scale Solar-Plus-Storage
Drivers:
- Curtailment reduction
- Renewable smoothing
- Capacity services
- Peak-shift and arbitrage
Recommended utility system solution:
👉 https://leochlithium.us/utility/
(Inserted as utility-grade solar-plus-storage option.)
5.3 Microgrids (Military, Mining, Remote Locations)
Engineering focus:
- Autonomous control
- Frequency-forming inverters
- Diesel-offset strategy
- Harsh-climate thermal performance
- Procurement Considerations for Engineers & Developers
6.1 Technical Evaluation Checklist
- Cell chemistry & supplier quality
- UL 9540A test data
- PCS overload capability
- Thermal system design
- BMS architecture
- EMS compatibility
- Communication protocols
6.2 Economic Factors
- LCOS vs. CapEx
- Augmentation strategy
- Round-trip efficiency in real conditions
- Degradation curve under specific duty cycles
6.3 Operational Requirements
- Spare parts ecosystem
- Remote analytics
- Commissioning support
- Long-term O&M availability
- Recommended Reading
For readers who want to explore industrial-grade energy storage architectures beyond solar-plus-storage, this article provides highly relevant engineering depth:
👉 Understanding Industrial Energy Storage Systems: Technologies, Architectures, and Deployment Considerations
https://leochlithium.us/understanding-industrial-energy-storage-systems-technologies-architectures-and-deployment-considerations/
This complements the current article by explaining deployment logic, industrial system topologies, and deep engineering considerations in C&I and factory settings.
- Conclusion
Solar energy storage systems have evolved into complex, highly engineered power assets. Modern deployments require deep understanding across battery chemistry, PCS topology, BMS hierarchy, thermal management, protection coordination, EMS logic, and grid compliance.
For EPCs, developers, facility engineers, and utility planners, engineering-grade system design—not just equipment selection—is what ensures reliability, safety, and lifecycle performance.
With the right architecture and control strategy, solar-plus-storage becomes a controllable, dispatchable, and financially robust asset powering the next decade of clean energy expansion.
