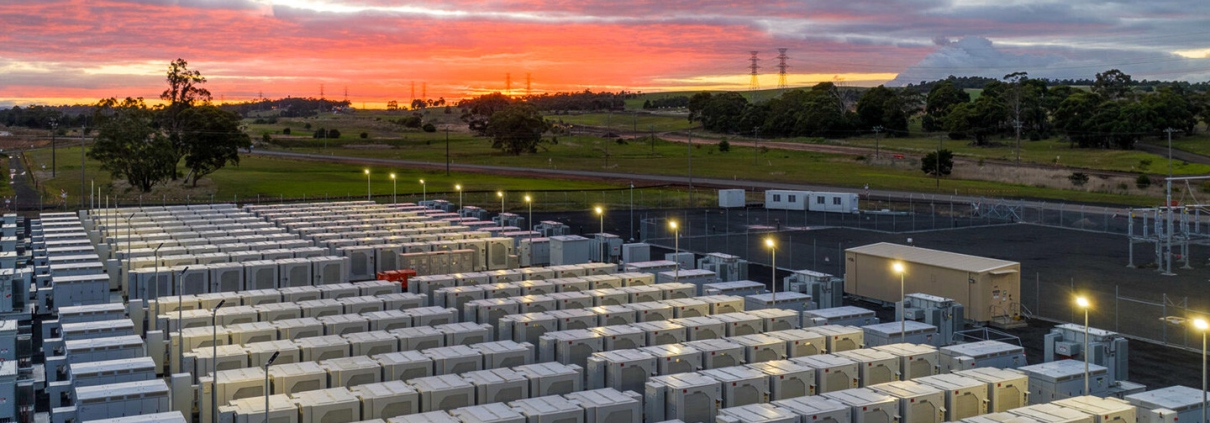

BESS Architecture: AC vs DC Topologies Explained for Modern Energy Storage Systems
Battery Energy Storage Systems (BESS) are not one-size-fits-all solutions. Beyond selecting battery capacity or chemistry, the system architecture plays a decisive role in performance, efficiency, and long-term value.
For a comprehensive overview of BESS system components and when to deploy a system, see BESS Storage System Explained.
This article dives into AC-coupled and DC-coupled BESS architectures, highlighting their advantages, limitations, and decision criteria for grid, renewable, and commercial applications.
Understanding AC-Coupled BESS Architecture
Overview
In an AC-coupled configuration, the BESS connects to the AC side of inverters or directly to the load. This topology is common in retrofit projects or systems integrating existing photovoltaic (PV) installations.
Advantages
- Flexibility: Easy integration with existing AC systems
- Compatibility: Works across various power ratings and inverter types
- Modularity: Supports distributed and modular deployments
Limitations
- Conversion losses: Double AC/DC conversions reduce overall efficiency
- Response speed: Slightly slower than DC-coupled systems for fast grid services
- Frequency regulation efficiency: May be less effective in high-precision applications
Understanding DC-Coupled BESS Architecture
Overview
DC-coupled systems connect directly to DC sources, such as solar PV arrays, bypassing initial AC conversion. This architecture is typically used in new installations or projects requiring optimized efficiency.
Advantages
- Higher efficiency: Fewer conversion steps reduce energy losses
- Fast response: Ideal for frequency regulation and rapid load adjustments
- Optimized energy flow: Reduces battery cycling and degradation
Limitations
- Complex initial design: Requires careful DC bus voltage and component compatibility planning
- Scalability: Less flexible in retrofit scenarios
- Maintenance complexity: Monitoring and servicing DC systems are more involved
AC vs DC BESS — Decision Framework
Selecting the optimal BESS topology involves multiple project-specific considerations:
| Factor | AC-Coupled | DC-Coupled |
| Project Type | Retrofit / integration with existing AC systems | Greenfield / new installations |
| Efficiency | Moderate | High |
| Response Speed | Standard | Fast |
| Modularity | High | Moderate |
| System Complexity | Lower | Higher |
| Ideal Use Case | Flexible integration, commercial PV + storage | High-performance, renewable maximization, fast grid services |
Key considerations:
- Align topology with primary objectives: grid services, renewable integration, or commercial energy management
- Balance efficiency vs flexibility based on project scale and location
- Consider CAPEX, O&M, and long-term performance
Case Studies & Applications
Grid-Scale Utility Projects
- AC-coupled: Simplifies integration with existing AC infrastructure
- DC-coupled: Delivers higher efficiency for frequency regulation and fast-response applications
Commercial & Industrial Installations
- AC-coupled: Modular rooftop PV + storage deployments
- DC-coupled: High-performance energy management for peak shaving and demand response
Renewable Integration
- DC-coupled BESS is often preferred for maximizing PV output and minimizing conversion losses
Best Practices for BESS Architecture Design
- Define system objectives early: Understand whether efficiency, flexibility, or response speed drives design decisions
- Consider lifecycle efficiency: Optimize topology for reduced battery degradation over time
- Integrate EMS and PCS planning: Architecture and control strategy must be coordinated from the start
- Plan for modularity and redundancy: Ensure scalability and operational resilience for long-term system growth
Key Takeaways
- AC-coupled BESS: Flexible, retrofit-friendly, modular
- DC-coupled BESS: Efficient, fast-response, integration-focused
- Topology impacts: Performance, economics, and long-term system value
- Decision framework: Must be project-specific and evaluated at the system level, not solely based on battery specs
